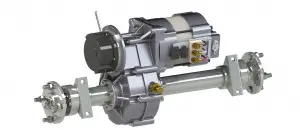

Lubrication and Sealing of Electric Transaxles: A B2B Engineering and Procurement Guide

When specifying an electric transaxle for an AGV, a floor-cleaning machine, a golf cart, or a low-speed utility vehicle, engineering teams naturally focus first on rated torque, gear ratio, and motor interface. Lubrication and sealing are usually treated as a footnote, until a field failure shows up as a gear whine, a weeping oil seal, or a seized bearing after a winter in storage. For OEM procurement and after-sales managers, these two subsystems decide whether a transaxle reaches its 4,000-hour or 8,000-hour design life, or fails around 800 hours. This guide consolidates the specification points that matter for sourcing, incoming qualification, and maintenance planning, written from the perspective of buyers and service engineers rather than lubricant chemists.

Selecting Gear Oil and Grease: Viscosity, NLGI Grade, and Base Stock

The reduction gear stage inside a transaxle typically runs at 1,500 to 6,000 rpm on the input pinion and 60 to 400 rpm on the output shaft, with bulk oil temperatures of 40 to 90°C in normal duty and transient peaks to 110 to 120°C under continuous full-load climbing. That duty profile, not a catalogue headline, defines the correct lubricant. For most integral transaxles the safe default is a synthetic gear oil in the ISO VG 150 to 320 range, or the equivalent SAE 80W-90 to 85W-140, paired with a lithium-complex or polyurea grease at the external bearings.

Base oil viscosity: lighter VG 100 to 150 grades reduce churning loss and improve start-up below -20°C; heavier VG 220 to 320 grades protect heavily loaded spiral-bevel or hypoid meshes above 200 N·m output torque.
API service class: GL-4 or GL-5 with extreme-pressure additives. Avoid GL-5 in worm-gear sections where active sulfur can attack bronze; prefer CLP or GL-4 in those zones.
Base stock: mineral oil covers -10°C to +90°C; a synthetic PAO or ester extends the envelope to -40°C to +140°C and roughly halves oxidation sludge over a 3,000-hour interval.
Grease for external bearings: NLGI grade 2 lithium-complex grease at the wheel bearing and the differential side bearing. Use NLGI 1 for climates below -30°C; NLGI 3 for high-speed or vertical-shaft arrangements where slump must be controlled.

What the NLGI Number Actually Means

The NLGI consistency number describes worked penetration at 25°C, measured in tenths of a millimeter. NLGI 000 reads 445 to 475, NLGI 0 reads 400 to 430, NLGI 1 reads 355 to 385, NLGI 2 reads 310 to 340, and NLGI 3 reads 265 to 295. For a sealed-for-life wheel bearing in a transaxle, NLGI 2 is the workhorse: the penetration window of 310 to 340 is stiff enough to stay in the race yet soft enough to pump under cold start-up. Specifying the wrong grade is a common procurement mistake. A grease that is too soft (NLGI 0) slings out of the bearing at 4,000 rpm; a grease that is too hard (NLGI 3) starves the race at low temperature and raises starting torque by 20 to 40 percent.

Additive Compatibility With Seal Elastomers

Extreme-pressure additives based on sulfur-phosphorus are standard for the steel mesh, but verify compatibility with the seal elastomer before release. A gear oil that is chemically excellent for the gears can swell or harden an NBR seal within 500 hours if the additive package is aggressive. Request the lubricant supplier’s elastomer-compatibility sheet and cross-check it against the seal material named in the transaxle datasheet; this single check prevents a large share of early weep failures.

First Fill Volume and Oil Change Interval

Under-filling starves the upper gear mesh; over-filling pressurizes the casing and forces oil past the seals. For a typical 1.5 to 4 kW integral transaxle, plan an initial fill of 0.6 to 1.2 liters per axle, filling to roughly 60 to 70 percent of the internal free volume and to the bottom of the fill plug thread. Confirm the exact volume against the supplier’s exploded drawing rather than estimating from casing size, because internal baffles and the brake chamber change the usable volume by 15 to 30 percent.

Light-duty AGV or indoor scrubber: oil change every 2,000 to 3,000 operating hours, or 24 months, whichever comes first.
Outdoor utility vehicle or golf cart: 1,500 to 2,000 hours, or 12 to 18 months.
Heavy washdown or dusty mining/construction duty: 1,000 hours or 6 months.
Sealed-for-life grease bearings: no scheduled relubrication, but plan a bearing replacement window at 6,000 to 8,000 hours.

When the transaxle ships dry, insist on a documented factory first-fill at the incoming inspection, because running a dry axle for even 30 minutes during commissioning can scar the pinion finish and shorten life by 10 to 20 percent. Build the first-fill step into the installation work instruction and verify the drain/fill plug torque, normally 18 to 25 N·m for an M16 plug with a fiber washer.

Oil Seal and O-Ring Materials: NBR vs FKM

The rotating shaft seal and the static O-rings are the parts most likely to leak, so the elastomer choice directly sets the temperature ceiling and the chemical resistance of the whole unit. The two materials procurement teams encounter most often are nitrile rubber (NBR) and fluoroelastomer (FKM, commonly known as Viton).

NBR: continuous service -30°C to +100°C, short peaks to +120°C. Good oil and grease resistance, poor against aromatic solvents, brake fluid, and strong acids. Typical shore hardness 70 to 90 A.
FKM: continuous service -20°C to +200°C, short peaks to +230°C. Excellent against oils, fuels, many solvents, and ozone. Higher cost, roughly 3 to 5 times the NBR price, and stiffer at low temperature.
Static O-rings at the cover and sensor ports: NBR 70 A covers most indoor duty; specify FKM 75 A when the unit sees belt washers, degreasers, or sustained +120°C bulk oil.

For a machine that mixes hot summers with cold-storage duty, FKM handles -20°C to +200°C and survives the solvent-based washdown that destroys standard NBR within a season, making it the right call even at higher unit cost when downtime is expensive. Match the rotating shaft seal elastomer to the highest sustained oil temperature plus a 15°C margin, not to the nominal ambient.

Anti-Leak Structure Design and Airtightness or Leakage Testing

A reliable seal is as much about geometry as about the elastomer. Specify transaxles built around a few proven anti-leak features rather than trusting a single lip seal.

Double-lip shaft seals with a dust lip and a grease cavity between the lips, which blocks abrasive ingress and gives a backup barrier.
A labyrinth or slinger ring on the shaft outboard of the seal, throwing off water and grit before it reaches the lip.
A vented breather or compensation membrane to equalize internal pressure and stop the casing from pumping oil out through the weakest seal during thermal cycling.
A recessed, torque-controlled drain/fill plug with a captive washer rather than a painted flat surface that crushes unevenly.

At incoming inspection, qualify the seal with a pressure-decay leakage test at 0.3 to 0.5 bar for 30 seconds, accepting no more than a 5 percent pressure drop, and a separate submerged air test at 0.2 bar for 20 seconds with zero rising bubbles from the shaft exits. For high-value or safety-relevant units, add a 24-hour static oil weep check at 80°C with the axle tilted 15 degrees to expose the upper seal. Document the test pressure, duration, and result per batch so a field leak can be traced to a process drift rather than blamed on installation.

Sealing Levels in Dusty and Washdown Environments

The environment a transaxle lives in should drive the sealing specification, not the other way around. Indoor AGV fleets on sealed floors need only basic shaft protection, while outdoor sweepers and food-plant scrubbers face both abrasion and pressurized water.

Dust and Abrasive Duty

In concrete-dust or grain-handling environments, specify the IP54 to IP66 shaft sealing with a triple-lip arrangement and an external slinger so grit never reaches the primary lip. Add a sight check at every 250 operating hours: a grey paste at the shaft exit means the dust lip is failing and the main seal is next. For very fine dust, consider a purge-air port that maintains a slight positive internal pressure of 0.02 to 0.05 bar to keep particles out.

Washdown and Hosedown Duty

Food, pharmaceutical, and street-cleaning machines are routinely hosed at 40 to 80 bar and 60 to 80°C. Here the transaxle needs FKM seals, stainless or zinc-nickel plated hardware, and a fully gasketed cover rated to at least IP66, with IP67 or IP69K reserved for units that are directly steam-cleaned. Confirm the rated pressure and duration with the supplier, because an IP66 claim tested at 100 bar for 3 minutes is very different from one tested at 12.5 liters per minute for 30 seconds.

Long-Term Storage and Lay-Up Lubrication

Transaxles that sit in a warehouse or on a seasonal machine for months fail in predictable ways: the oil drains to the bottom, the upper gears lose their film, and a stationary lip seal takes a permanent set, so the first run after storage leaks. A simple lay-up procedure prevents most of this.

Store upright at -10°C to +40°C, below 70 percent relative humidity, away from direct sun and ozone sources such as electric motors and welders.
Fill to the normal operating level rather than draining; a full casing protects internal surfaces from corrosion.
Rotate the axle by hand every 30 to 45 days through at least two full revolutions to redistribute the oil film and relax the seal lip. For stored fleets, a slow 5-minute jog at 30 rpm monthly achieves the same result.
Spray exposed shafts and hardware with a thin rust-preventive oil; cap open ports with tape or plugs.
Before returning to service after more than 6 months, inspect the shaft exits for weep marks and re-torque the breather and plugs.

Tip: Always confirm the seal elastomer and the rated fill volume against the specific transaxle model drawing before release, because a wrong NBR-versus-FKM choice or a 20 percent overfill is the most common cause of field leaks that get blamed on the axle design.

Procurement and Qualification Checklist

For buying teams, the lubrication and sealing story should be captured as a short specification line item rather than left to the supplier’s default. The following checklist works as an RFQ attachment and an incoming-inspection record.

Specify gear oil grade and volume: ISO VG or SAE grade, GL class, fill volume in liters, and first-fill responsibility (factory or installer).
Name the seal elastomer per position: NBR or FKM, shore hardness, and temperature ceiling.
Request the leakage test method and acceptance limit: pressure-decay bar and percent drop, submerged bubble test pressure and time.
State the environmental rating needed: IP54 for indoor, IP66 for dust, IP67 or IP69K for washdown, with test conditions.
Define the maintenance interval by duty cycle: light, outdoor, or heavy washdown hours and months.
Require the elastomer-compatibility sheet for the chosen gear oil and grease.
Ask for a storage and lay-up instruction sheet to hand to the service team.

FAQ

Can I use the same grease for the gears and the wheel bearings?

Usually no. The enclosed gear mesh wants an EP gear oil with extreme-pressure additives, while the wheel bearing wants a non-EP, high-drop-point grease such as lithium-complex NLGI 2. Mixing the two can soften the grease or reduce the oil film on the gears. Keep them separate and confirm the supplier fills each cavity with the correct product at the factory.

How do I know if NBR is good enough or I need FKM?

Compare the highest sustained oil temperature plus a 15°C margin against NBR’s +100°C continuous limit. If the unit sees washdown solvents, degreasers, or sustained heat above 100°C, specify FKM. As a rule, indoor AGV and dry-floor scrubbers are fine with NBR; outdoor utility vehicles, sweepers, and food-plant machines should move to FKM unless the supplier proves NBR survives the duty.

What leakage test should I require at incoming inspection?

Require a pressure-decay test at 0.3 to 0.5 bar for 30 seconds with no more than a 5 percent drop, plus a submerged air test at 0.2 bar for 20 seconds with zero bubbles at the shaft exits. For high-value units add a 24-hour hot oil weep check at 80°C. Keep the recorded results per batch so a later field leak can be traced to process, not installation.

How often should the oil really be changed?

It depends on duty, not on a single calendar number. Light indoor AGV duty runs 2,000 to 3,000 hours or 24 months; outdoor golf carts and utility vehicles 1,500 to 2,000 hours or 12 to 18 months; heavy washdown or dusty duty 1,000 hours or 6 months. Sample the oil at the midpoint and watch for water content above 0.1 percent and a viscosity swing beyond plus or minus 20 percent, both of which justify an earlier change.

My transaxles sit unused every winter. What should I do?

Fill to the normal operating level, store upright below 40°C and 70 percent humidity, and rotate the axle by hand or with a 30 rpm jog every 30 to 45 days so the seal lip does not take a set and the oil film stays on the upper gears. Cap open ports and lightly oil exposed shafts. After more than 6 months, re-check the shaft exits for weep marks before returning the machine to service.
