Gradeability Testing and Hill-Start Specifications for Electric Transaxles

For OEM engineers, procurement specialists, and vehicle integration teams, the ability of an electric transaxle to climb and hold a slope is rarely a single number. It is a system behavior that depends on motor torque, gear reduction, controller current limits, thermal headroom, and the way the vehicle is actually loaded in the field. A quoted “gradeability of 25%” means almost nothing unless it is tied to a payload, a duration, an ambient temperature, and a definition of success (steady climb, or a restart from standstill). This guide walks through how slope requirements are defined across applications, what peak and continuous torque actually do during a climb, how stall current and thermal limits shape the specification, and how to write a gradeability clause that a supplier can be held to.

Slope Percentage vs. Angle: The Conversion Every Spec Sheet Should Get Right

The first source of confusion in any procurement discussion is the unit itself. Slope is most often expressed as a percentage (grade %), while engineers who think in kinematics prefer degrees. They are not the same scale and they must not be mixed on a datasheet.

The grade percentage is the rise divided by the run, expressed as a percentage. In a right triangle, that is the tangent of the incline angle:

grade % = tan(θ) × 100
θ = arctan(grade % / 100)

Because tangent is non-linear, the gap between percentage and degrees widens as the slope steepens. A 10% grade is about 5.7°. A 15% grade is about 8.5°. A 25% grade is about 14.0°. A 30% grade is about 16.7°, and a 45% grade already reaches roughly 24.2°. Beyond 45% the figure looks moderate in percent but is already a very aggressive 24°+ incline, and mechanical traction rather than torque usually becomes the limiting factor.

For procurement accuracy, ask suppliers to state both figures. A spec that lists only “20°” without the corresponding 36.4% grade invites mismatched expectations between your vehicle dynamics team and the transaxle vendor. Keep one canonical unit in your internal requirement and let the supplier confirm the converted value in writing.

Typical Grade Requirements by Application

Grade expectations vary enormously by duty cycle. The ranges below reflect common industry practice for low-speed electric vehicles and mobile equipment rather than any single manufacturer’s claim.

Golf Course and Turf Utility Vehicles: 15% to 25%

Maintained turf trails and cart paths rarely exceed gentle grades, but course designers and grounds crews expect the vehicle to climb served hills fully loaded with two passengers and clubs, and to restart on a bridge or ramp without rollback. A 15% to 25% gradeability at full payload is the typical procurement window for golf and resort shuttles. Sustained climbing is short, so thermal load is usually mild, but hill-start behavior matters because passengers are present.

Campus, Warehouse, and Industrial AGV Logistics: 8% to 15%

Automated guided vehicles and indoor-outdoor logistics platforms operate on ramps, dock edges, and graded yards. Most facilities target 8% to 15% ramp capability with the rated towing or payload mass. Because AGVs may run long shifts, the emphasis shifts from peak torque toward continuous torque and thermal stability rather than a one-time burst up a steep ramp.

Mountain and Off-Road Utility Terrain Vehicles: 30% and Above

Utility terrain vehicles, agricultural carriers, and survey platforms working on unpaved, eroded, or mountainous ground routinely face grades well beyond 30%. A 30%+ gradeability requirement generally forces a low gear ratio, a high-peak-torque motor, and careful attention to traction and braking on descent. Here, the transaxle must deliver torque repeatedly, not just once, so gear and bearing durability under high input torque becomes a core selection criterion.

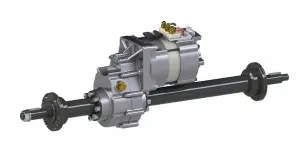

Floor Sweepers and Scrubbers: 10% to 18%

Ride-on cleaning machines move between building levels and loading docks. Their grade needs sit between AGV and turf vehicles, typically 10% to 18%, with the added constraint that a fully saturated tank changes the center of gravity and the effective load on the drive axle.

Peak Torque vs. Continuous Torque in Climbing

Two torque numbers appear on every motor and transaxle datasheet, and confusing them is the most common cause of field failures on slopes.

Peak torque (sometimes called stall or max torque) is the short-duration output available for launch, hill-start, and acceleration. It is what gets a stationary, fully loaded vehicle moving on a grade. It can be sustained only for seconds to a minute before the motor overheats or the controller current limit trips. Typical low-speed transaxle drive motors might deliver peak torque in the range of 2 to 4 times their continuous rating, depending on cooling and duty class.

Continuous torque is the output the system can hold indefinitely (or for the rated duty cycle) without exceeding thermal limits. It determines whether the vehicle can keep climbing a long grade, not just start on it. A vehicle that launches fine on a 25% ramp but slows and stalls 40 seconds into a sustained climb usually has enough peak torque and not enough continuous torque or cooling.

The wheel-edge tractive force is what matters to the vehicle, and it equals transaxle output torque multiplied by the overall reduction and divided by the wheel radius. When specifying, compute the required wheel torque from your worst-case grade and mass, then check both the peak torque (for start) and continuous torque (for hold) against that number with a safety margin of at least 15% to 25%.

Stall Current and Controller Protection at Hill Start

At the moment of hill start, the motor is near zero speed and the current demand spikes toward the stall value. This is the highest current the drive sees in normal operation, and it is where controllers and wiring are most stressed.

Stall current can be 4 to 8 times the motor’s rated current depending on winding and voltage class.
The controller must either limit current to a safe ceiling or tolerate the transient for the few seconds needed to accelerate past the high-torque low-speed region.
Repeated hill starts without thermal derating will heat the motor, the controller, and the connectors simultaneously.

Good procurement practice is to request the supplier’s stall current and over-current protection thresholds explicitly, and to confirm how the controller behaves under a failed start (e.g., it must cut power rather than hold full stall current indefinitely, which would cook the windings). For safety-critical platforms, the electromagnetic brake release sequence should be coordinated with motor torque ramp-up so the vehicle does not roll backward during the start transient.

Temperature Rise Limits Under Sustained Climbing

A single short climb tells you little. The real test is repeated or continuous grade work, because that is where insulation and lubricant fail. Thermal limits should be specified as temperature rise above ambient, measured at defined points.

Motor winding temperature rise: commonly limited to around 60 K to 80 K above ambient for class B/F insulation in continuous duty, with absolute temperatures kept below the insulation class rating.
Transaxle housing and gear mesh temperature: typically monitored to stay below roughly 80°C to 95°C at the housing surface, depending on sealing and lubricant grade.
Ambient reference: tests are usually run at 20°C to 25°C baseline, but procurement for hot-climate deployment should call out a 40°C or 45°C ambient qualification.

A practical acceptance rule is that after a defined continuous-climb cycle, the system stabilizes below the limit and returns toward ambient within a specified cooldown window. If temperature keeps climbing without stabilization, the duty rating is being exceeded and the gear ratio or cooling must change.

Roller Bench Testing vs. Real-Slope Testing

Two complementary methods are used, and a robust validation program uses both rather than choosing one.

Roller Bench (Dynamometer) Testing

The transaxle is mounted on a roller stand that simulates a road load by resisting rotation. Advantages include repeatability, controllable load and speed, easy thermocouple placement, and no weather dependence. It is ideal for mapping the torque-speed curve, measuring temperature rise versus duty, and logging stall current. The weakness is that it cannot reproduce traction loss, tire deflection, or the dynamic weight transfer of a real vehicle on a slope.

Real-Slope (Proving Ground) Testing

The complete vehicle climbs instrumented gradients. This validates the whole system: transaxle, motor, controller, tires, brakes, and vehicle mass distribution. It captures hill-start rollback, traction limits, and controller behavior under load. The weakness is variability: surface, temperature, and tire pressure must be controlled and recorded, or results are not comparable run to run.

Load Matters: Full-Load vs. Half-Load Differences

Gradeability is payload-dependent by definition. The same transaxle that climbs 25% at half load may manage only 12% to 15% at full payload, because required tractive force scales directly with total mass including vehicle, payload, and passengers.

Half-load climbs exercise peak torque but rarely stress thermal limits, so they look easy on a bench.
Full-load sustained climbs combine high torque and long duration, pushing both the motor and the gear mesh toward their thermal and mechanical ceilings.
Procurement should always define gradeability at the maximum technically permitted payload, since that is the conservative, field-representative case.

Document the test mass precisely, including battery weight, which is often forgotten and can be 20% to 30% of total vehicle mass on a small platform.

How to Write the Gradeability Clause in Your Procurement Spec

A usable gradeability clause has four mandatory elements. Vague language like “good climbing ability” is not acceptable for supplier qualification.

Tip: Always qualify gradeability at maximum payload and at the hottest ambient your vehicle will see in the field, not at the ideal 25°C bench condition.

Grade (slope): state both percentage and angle, e.g., “25% (14.0°) minimum.”
Load: state the payload and total vehicle mass, e.g., “at 500 kg payload, 1100 kg GVW.”
Duration: state how long the grade must be held or climbed, e.g., “sustained climb of 100 m at 8 km/h, or restart from standstill.”
Ambient temperature: state the qualification environment, e.g., “verified at 25°C and separately at 40°C ambient.”

Add acceptance criteria: maximum housing temperature, allowable speed drop, no controller fault during the cycle, and a defined number of repeated starts without derating. Tie the clause to a test method (bench, slope, or both) and to the data the supplier must return.

Required Test Data and Documentation

When a supplier submits a gradeability qualification, the procurement package should include enough raw data to be audited:

Grade and angle used, with surface and tire specification.
Total test mass and payload breakdown.
Motor current (including peak/stall) and controller limit behavior logged versus time.
Winding, housing, and gear-temperature traces with ambient reference.
Vehicle speed versus distance on the climb.
Number of repeated starts and any thermal derating events.

Without this dataset, a “pass” on gradeability is an opinion, not evidence. Insist on time-series logs rather than single summary numbers.

FAQ

What is the difference between gradeability percentage and incline angle?

Gradeability percentage is rise over run (tan of the angle times 100), while incline angle is the geometric angle in degrees. They are related but non-linear; 30% equals about 16.7°, and 45% already reaches roughly 24.2°. Always state both on a spec to avoid misinterpretation.

Is peak torque or continuous torque more important for climbing?

Both. Peak torque determines whether the vehicle can start and accelerate on the grade, while continuous torque determines whether it can keep climbing without overheating or stalling. A vehicle that starts but cannot hold the climb usually lacks sufficient continuous torque or cooling.

Why is stall current a concern during hill start?

At zero speed the motor draws near stall current, often 4 to 8 times rated current. If the controller holds that indefinitely on a failed start, windings and connectors overheat. The controller must limit or cut current and coordinate brake release to prevent rollback and thermal damage.

Should I rely on roller bench testing or real-slope testing?

Use both. Bench testing gives repeatable torque, temperature, and current data but misses traction and weight transfer. Real-slope testing validates the complete vehicle system including tires and brakes but is weather and surface dependent. Together they give a defensible qualification.

How should gradeability be written into a procurement specification?

Include four elements: the grade (percentage and angle), the load (payload and GVW), the duration (climb distance or restart requirement), and the ambient temperature. Add acceptance limits for temperature, speed drop, and controller faults, and require time-series test data.

Does half-load gradeability tell me anything useful?

It shows peak-torque headroom but understates thermal and mechanical stress. Full-load sustained climbing is the conservative case and should be the contractual requirement, with half-load figures treated only as supplementary marketing data.

Post time: Sep-23-2026
