Why Are Electric Transaxles Essential for EVs

Why Are Electric Transaxles Essential for EVs​

In the fast – paced world of electric vehicle (EV) development, every component plays a crucial role in determining the vehicle’s performance, efficiency, and overall viability. One such component that has emerged as a linchpin in EV design is the electric transaxle. This blog post delves deep into why electric transaxles are essential for EVs, exploring their functionality, advantages, and the impact they have on the future of electric mobility.​

Understanding Electric Transaxles​

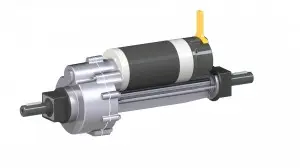

At its core, an electric transaxle is a highly integrated component that combines the functions of an electric motor, transmission, and differential into a single compact unit. This integration is a departure from traditional drivetrain systems found in internal combustion engine (ICE) vehicles, where these components are separate entities.​

Components and How They Work Together​
Electric Motor: The heart of the electric transaxle, the electric motor converts electrical energy from the battery into mechanical energy. In an EV, the motor can be either an alternating current (AC) or direct current (DC) motor, with AC motors, such as permanent – magnet synchronous motors (PMSM), being more commonly used due to their high efficiency and power density. The motor’s torque output is what ultimately drives the wheels of the vehicle.​

Transmission: While many EVs initially utilized single – speed transmissions, some are now incorporating multi – speed transmissions. The transmission in an electric transaxle serves to adjust the ratio between the motor’s rotational speed and the speed of the wheels. This is important because electric motors operate most efficiently within a certain range of speeds. By having multiple gear ratios, the vehicle can optimize the motor’s performance across different driving conditions, such as low – speed acceleration and high – speed cruising.​

Differential: The differential is responsible for allowing the wheels on the same axle to rotate at different speeds when the vehicle is turning. In an electric transaxle, the differential ensures that power is distributed evenly to the wheels while accommodating the difference in wheel travel during cornering. This is crucial for maintaining vehicle stability and control.​

Efficiency Improvements​
One of the most significant reasons electric transaxles are essential for EVs is their ability to enhance overall vehicle efficiency.​

Direct Energy Transfer​
In traditional ICE vehicles, the power transfer from the engine to the wheels involves multiple components, such as the clutch, transmission, driveshaft, and differential. Each of these components introduces some level of energy loss, typically through friction and mechanical inefficiencies. In contrast, electric transaxles have a more direct energy transfer path. The electric motor is directly connected to the transmission and differential within the transaxle unit, minimizing the number of moving parts and reducing energy losses. As a result, electric motors in transaxles can convert over 90% of the electrical energy from the battery into useful mechanical energy for propelling the vehicle, far surpassing the efficiency of traditional internal combustion engines, which typically have an efficiency of around 20 – 30%.​

Optimized Power Use​
Electric transaxles are highly intelligent components that can manage power output based on real – time driving conditions. They can adjust the torque distribution between the wheels instantaneously. For example, when an EV is accelerating from a standstill, the transaxle can direct more torque to the wheels to provide quick and smooth acceleration. During steady – state cruising, the transaxle can optimize the power output to minimize energy consumption. This real – time power management not only improves the vehicle’s overall efficiency but also contributes to an extended driving range. Some advanced electric transaxles have demonstrated efficiency improvements of up to 15% compared to less integrated or optimized drivetrain systems.​

Regenerative Braking​
Another key efficiency – enhancing feature enabled by electric transaxles is regenerative braking. When an EV decelerates or brakes, the electric motor in the transaxle can operate in reverse, acting as a generator. Instead of dissipating the kinetic energy of the vehicle as heat through traditional friction brakes, the regenerative braking system captures this energy and converts it back into electrical energy, which is then stored in the battery. This energy – recovery process is made possible by the integration of the motor, transmission, and control systems within the electric transaxle. Regenerative braking can significantly increase the overall energy utilization of an EV, contributing to a longer driving range. In urban driving, where frequent braking occurs, regenerative braking can recover a substantial amount of energy that would otherwise be wasted.​
Performance Advantages​
Electric transaxles also play a pivotal role in enhancing the performance of EVs.​

Improved Acceleration​
The instant torque delivery of electric motors, combined with the efficient power transfer capabilities of electric transaxles, results in significantly improved acceleration for EVs. Unlike ICE vehicles, which need to build up engine speed to generate torque, electric motors can produce maximum torque from zero revolutions per minute (RPM). This means that when the driver presses the accelerator pedal in an EV with an electric transaxle, the vehicle can accelerate rapidly. In fact, many high – performance EVs are able to achieve 0 – 60 mph (0 – 97 km/h) acceleration times that are on par with or even better than their high – performance gasoline – powered counterparts. This quick acceleration is not only thrilling for drivers but also highly practical in urban driving scenarios, where rapid acceleration is often required for merging into traffic or overtaking other vehicles.​

Better Handling and Stability​
The integration of the motor, transmission, and differential in an electric transaxle allows for more precise control over the vehicle’s power delivery and weight distribution. By having a more compact and integrated drivetrain, automakers can better balance the weight of the vehicle, which is crucial for handling and stability. Additionally, some electric transaxles are equipped with advanced features such as dynamic torque vectoring. Torque vectoring involves the selective application of torque to individual wheels, which can improve the vehicle’s cornering ability. For example, when an EV is taking a sharp turn, the transaxle can send more torque to the outer wheels, helping the vehicle to turn more smoothly and reducing the risk of understeer or oversteer. This enhanced handling and stability not only improve the driving experience but also contribute to overall vehicle safety.​
Cost and Maintenance Benefits​
Beyond efficiency and performance, electric transaxles offer significant cost and maintenance advantages for EVs.​

Reduced Maintenance Needs​
Compared to traditional mechanical drivetrain systems, electric transaxles have fewer moving parts. In a traditional ICE vehicle, components such as the engine, clutch, and complex multi – speed transmissions require regular maintenance, including oil changes, filter replacements, and tune – ups. Electric transaxles, on the other hand, have a simpler design with fewer wear – and – tear components. For example, there is no need for oil changes in an electric motor within the transaxle as there is in an ICE engine. The absence of a clutch also means there is no need to replace worn – out clutch plates. This reduction in moving parts and associated maintenance requirements leads to lower maintenance costs over the lifespan of the vehicle. Some estimates suggest that EVs with electric transaxles can have maintenance costs that are up to 50% lower than those of comparable ICE vehicles.​

Lower Production Costs​
The integration of multiple components into a single electric transaxle unit also has implications for vehicle production costs. By combining the electric motor, transmission, and differential, automakers can simplify the manufacturing process. Fewer individual components mean less complexity in the supply chain, reduced assembly time, and potentially lower costs for raw materials. Additionally, the compact size of electric transaxles allows for more efficient use of space in the vehicle, which can translate into cost savings in terms of vehicle design and packaging. As the production volume of EVs increases, economies of scale will further drive down the cost of electric transaxles, making EVs more affordable for consumers.​

The Future of Electric Transaxles​
As the EV market continues to grow and evolve, electric transaxles are expected to play an even more significant role.​
Technological Advancements​
Research and development in the field of electric transaxles are ongoing, with several exciting advancements on the horizon. One area of focus is the development of more efficient motors with higher power densities. New materials and manufacturing techniques are being explored to create motors that can produce more power while taking up less space and weighing less. Another area of development is in the field of transmissions. Continuously variable transmissions (CVTs) are being adapted for use in EVs, which could further optimize the motor’s performance across a wider range of driving conditions. Additionally, improvements in power electronics and control systems will enable even more precise management of power delivery within the electric transaxle.​

Integration with Other Vehicle Systems​
In the future, electric transaxles are likely to be more closely integrated with other vehicle systems. For example, they could be integrated with advanced battery management systems to further optimize energy use. By communicating with the battery management system, the electric transaxle could adjust its power output based on the state of charge of the battery, ensuring that the battery is neither over – discharged nor over – stressed. Electric transaxles may also be integrated with vehicle – to – grid (V2G) technology, allowing EVs to not only draw power from the grid but also feed electricity back into it during periods of high demand. This integration would require sophisticated control systems within the electric transaxle to manage the two – way flow of power.
