In-depth exploration of the drive shaft DC motor for tricycles: performance, application and market insights
Introduction
In today’s society, with the increasing awareness of environmental protection and the growing demand for sustainable transportation solutions, electric tricycles have gradually become a popular choice for people to travel short distances and transport goods with their advantages of zero emissions, low cost, high efficiency and convenience. As one of the core components of electric tricycles, the performance and quality of the drive shaft DC motor (Transaxle DC Motor) are directly related to the overall performance and service life of the vehicle. This article will explore the relevant knowledge of the drive shaft DC motor in depth, including its working principle, type, performance characteristics, application scenarios, and market development status and trends, aiming to provide international wholesale buyers with valuable information to help them better understand and choose suitable motor products.
1. Working principle of drive shaft DC motor
The drive shaft DC motor is a device that converts electrical energy into mechanical energy. Its basic working principle follows the law of electromagnetic induction. When DC current passes through the stator winding of the motor, a magnetic field is generated, which interacts with the permanent magnets on the rotor to drive the rotor to rotate. The rotational motion of the rotor is transmitted to the wheels through the drive shaft to achieve the forward or backward movement of the vehicle.

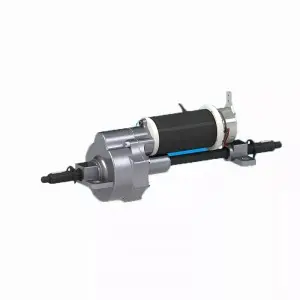

In electric tricycles, the drive shaft DC motor is usually integrated with components such as the transmission and differential to form a compact transmission system, the so-called transaxle system. This design helps to improve space utilization, reduce the number of parts, reduce the weight of the vehicle, and improve transmission efficiency and reliability.
2. Types of drive shaft DC motors
Brushed DC motor:
Brushed DC motors are a traditional and common type of motor that uses brushes and commutators to achieve current commutation to keep the rotor rotating continuously. The advantages of this motor are low cost, simple control, and high starting torque. It is suitable for cost-sensitive applications that do not require extremely high motor performance, such as some basic electric tricycles.
However, the brushes will wear out during long-term use and need to be replaced regularly, otherwise it will affect the performance of the motor and even cause failures. In addition, the contact resistance and sparks between the brushes and the commutator will also limit the efficiency and maximum speed of the motor, and may generate electromagnetic interference.
Brushless DC motor:
Brushless DC motor (BLDC) uses electronic commutation technology to control the commutation of current through the motor controller, without brushes and commutators. This makes the brushless DC motor have higher efficiency, longer service life, lower maintenance cost, better speed stability and noise performance.
The brushless DC motor has a wide speed regulation range and can achieve precise speed control to meet the needs of different road conditions and load conditions. Its high efficiency characteristics mean that under the same input power, the brushless DC motor can output more mechanical energy, thereby extending the vehicle’s cruising range or improving its power performance. At present, brushless DC motors have been widely used in high-end electric tricycles and some applications with high performance and reliability requirements, such as freight and tourist versions of electric tricycles.
3. Performance characteristics of drive shaft DC motors
Power and torque output
Power is a key indicator to measure the motor’s ability to do work, usually in watts (W) or kilowatts (kW). For electric tricycles, the power of the motor directly affects its maximum speed, acceleration performance and load capacity. Generally speaking, a motor with a higher power can provide a stronger power output, making the vehicle easier to start, climb and accelerate.
Torque is the rotational torque generated when the motor output shaft rotates, which determines the vehicle’s traction and carrying capacity. High-torque motors can generate greater traction at low speeds, allowing tricycles to easily cope with various complex road conditions, such as starting on steep slopes and heavy-load transportation. For example, some electric tricycles specifically used for cargo transportation are equipped with a DC motor with a drive shaft that can reach a higher level of torque to meet the transportation needs of heavy goods.
Efficiency and energy consumption
Motor efficiency refers to the efficiency of the motor in converting electrical energy into mechanical energy. Efficient motors can reduce the consumption of electrical energy while ensuring power output, thereby extending the vehicle’s cruising range and reducing operating costs. The efficiency of the motor can be improved by optimizing the design of the motor, using high-performance permanent magnet materials and advanced manufacturing processes.
In addition, the energy consumption of the motor is also closely related to factors such as the vehicle’s controller, transmission system and driving habits. Reasonable motor control strategies can ensure that the motor can operate efficiently under different working conditions and avoid energy waste. For example, the use of advanced control algorithms such as vector control or direct torque control can improve the control accuracy and efficiency of the motor.
Reliability and durability
Since electric tricycles are often used in various complex and harsh environments, such as high temperature, low temperature, humidity, bumps, etc., the reliability and durability of the motor are crucial. High-quality drive shaft DC motors usually adopt a sealed design to prevent dust, water vapor, etc. from entering the motor and affecting the normal operation of the motor. At the same time, key components inside the motor, such as bearings and gears, will also use high-quality materials and advanced manufacturing processes to improve their wear resistance and fatigue resistance and extend the service life of the motor.
In addition, the heat dissipation design of the motor is also an important aspect to ensure its reliability and durability. A good heat dissipation system can effectively reduce the temperature of the motor during operation and prevent performance degradation and damage caused by overheating of the motor. Common heat dissipation methods include natural heat dissipation, air cooling and water cooling. Choose the appropriate heat dissipation method according to the power size and application scenario of the motor.
4. Application scenarios of drive shaft DC motors
Passenger tricycles
In many cities and towns, electric tricycles are widely used in residents’ daily travel, tourism and sightseeing as a convenient short-distance passenger transport tool. Passenger tricycles equipped with suitable drive shaft DC motors can provide a comfortable ride and stable driving performance, meeting people’s needs for short-distance transportation.
For example, in tourist attractions, electric tricycles can be used as sightseeing vehicles, and their motors need to have good reliability and low noise characteristics to ensure the comfort and safety of tourists during sightseeing. At the same time, in order to adapt to different road conditions in the scenic area, such as uphill and downhill, turning, etc., the motor should have sufficient power and torque output to ensure that the vehicle can run smoothly.
Freight tricycles
For cargo transportation, electric tricycles have the advantages of flexibility, easy loading and unloading, and low operating costs. They are especially suitable for the delivery of small batches of goods under road conditions such as urban streets, alleys and rural areas. Freight tricycles usually need to carry heavier goods, so the power performance of the motor is required to be higher.
The drive shaft DC motor can provide strong power support for freight tricycles, enabling them to easily cope with various cargo requirements and complex road conditions. For example, in urban logistics distribution, electric tricycles can be used for express delivery, fresh food delivery, etc. The high torque output of its motor can help the vehicle better carry goods when starting and climbing, and improve transportation efficiency.
Special operation tricycles
In addition to passenger and freight transportation, electric tricycles are also widely used in various special operation fields, such as sanitation cleaning, property maintenance, agricultural irrigation, etc. In these application scenarios, the drive shaft DC motor can be customized and optimized according to different operation requirements.
For example, in the field of sanitation cleaning, electric tricycles can be equipped with cleaning equipment such as sweepers and sprinklers. The motor needs to have good stability and durability to adapt to long-term continuous work and various harsh environmental conditions. At the same time, the control accuracy of the motor will also affect the working effect of the cleaning equipment, such as the sweeping speed of the sweeper and the watering flow of the sprinkler.
5. Development status and trend of the drive shaft DC motor market
Market development status
With the increasing global attention to environmental protection and sustainable development, and the policy support of governments for new energy vehicles and electric vehicles, the electric tricycle market is showing a rapid growth trend. As the core component of electric tricycles, the market for drive shaft DC motors has also flourished.
At present, there are many drive shaft DC motor manufacturers in the market, including some well-known international brands and emerging domestic enterprises. These manufacturers have launched fierce competition in technology research and development, product quality, production scale and market share. There are certain differences in performance, price, quality and after-sales service between motor products of different brands, providing buyers with a wealth of choices.
In addition, with the continuous advancement of electric vehicle technology, some advanced technologies and materials have also begun to be applied to the field of drive shaft DC motors, such as high-performance permanent magnet materials, new insulation materials, intelligent motor controllers, etc. The introduction of these innovative technologies has further improved the performance and reliability of motors and promoted the upgrading and development of the market.
Market development trend
High performance: In the future, drive shaft DC motors will develop in the direction of higher power density, higher efficiency and higher torque density. This will further improve the power performance, cruising range and load capacity of electric tricycles, and meet users’ higher requirements for vehicle performance.
Intelligence: With the continuous development of the Internet of Things, big data and artificial intelligence technologies, intelligence will become an important development trend of drive shaft DC motors. Smart motors can monitor the operating status of motors in real time, such as temperature, speed, torque, current, etc., through built-in sensors and controllers, and transmit data to the cloud or vehicle control system. Through data analysis and processing, remote monitoring, fault diagnosis and predictive maintenance of motors can be realized, improving the reliability and service life of motors, while also providing basic support for intelligent management of vehicles.
Integration: In order to improve the space utilization and system reliability of electric tricycles, the drive shaft DC motor will be further integrated with other key components such as transmissions, differentials, controllers, etc. This integrated design can not only reduce the number of parts and connection interfaces, reduce the risk of system failure, but also optimize the layout of the vehicle and improve the vehicle’s handling and comfort.
Greening: In the context of increasingly stringent environmental protection policies, green manufacturing and sustainable development of drive shaft DC motors will become the focus of attention. Manufacturers will pay more attention to the use of environmentally friendly materials, optimization of production processes, reduction of energy consumption and reduction of waste emissions to achieve greening of the motor production process. At the same time, the recycling and reuse of motors will also be further promoted to reduce the impact on the environment and meet the requirements of sustainable development.
6. How to choose a suitable drive shaft DC motor
Clear application requirements
Before choosing a drive shaft DC motor, you must first clarify the application scenarios and usage requirements of the electric tricycle, including the type of vehicle (passenger, freight or special operation), load capacity, maximum speed, cruising range, driving conditions, etc. Different application requirements have different requirements for the performance parameters of the motor. For example, freight tricycles require motors with higher torque output to meet the needs of heavy-load transportation, while passenger tricycles pay more attention to the comfort and noise performance of the motor.
Evaluate motor performance parameters
According to application requirements, carefully evaluate the performance parameters of the motor, such as power, torque, efficiency, speed range, voltage level, etc. Ensure that the performance of the motor can meet the operating requirements of the vehicle under various working conditions, and have a certain margin to cope with emergencies and load changes. At the same time, consider the performance stability and reliability of the motor, and choose motor products that have been strictly tested and verified.
Pay attention to motor quality and brand
The quality and brand of the motor are important factors to ensure its performance and reliability. Choosing motor products from well-known brands can usually get more quality assurance and after-sales service support. Understanding the motor manufacturer’s production process, quality control system, corporate reputation and market reputation can help evaluate its product quality and reliability. In addition, checking the motor’s product certification, such as ISO certification, CE certification, etc., can also serve as an important basis for judging the quality of the motor.
Consider the motor control system
The motor control system is closely related to the motor itself, and its performance directly affects the motor’s operating effect and the overall performance of the vehicle. Advanced motor control systems can achieve precise control of the motor, improve the motor’s efficiency and stability, and provide a variety of protection functions, such as overcurrent protection, overvoltage protection, overheating protection, etc. Therefore, when selecting a motor, it is necessary to consider the performance and functions of its supporting motor controller at the same time to ensure that the motor control system can meet the vehicle’s control requirements.
Evaluate the cost-effectiveness ratio
Purchase cost is one of the important factors that many buyers pay attention to, but when choosing a drive shaft DC motor, it is necessary to consider not only the purchase price of the motor, but also the motor’s service life, maintenance cost, energy consumption cost, and the impact on the overall performance of the vehicle, and evaluate its cost-effectiveness ratio. Although the initial purchase cost of a high-quality, high-performance motor may be high, it may be more cost-effective in the long run due to its long service life, low maintenance cost, low energy consumption, and ability to improve the performance and market competitiveness of the vehicle.
7. Maintenance and care of the drive shaft DC motor
Regular inspection and cleaning
Inspect and clean the drive shaft DC motor regularly to ensure that there is no accumulation of dust, oil, debris, etc. on the surface of the motor. When cleaning, you can use a clean soft cloth or cotton swab to dip a small amount of detergent to gently wipe the motor housing and heat sink, but be careful to avoid the detergent from entering the inside of the motor to avoid damage to the electrical components and insulation materials inside the motor.
At the same time, check whether the mounting bolts of the motor are tightened and whether the connection between the drive shaft and the motor output shaft is loose. If there is any looseness, tighten it in time to ensure the normal operation of the motor and the reliability of power transmission.
Pay attention to the motor temperature
The motor will generate heat during operation. Excessive temperature may affect the performance and life of the motor, and even cause the motor to burn out. Therefore, pay close attention to the temperature changes of the motor, especially in high temperature environments or high load operating conditions. The temperature of the motor can be monitored in real time by installing a temperature sensor on the motor or using an infrared thermometer.
If the motor temperature is found to be too high, timely measures should be taken, such as reducing the load, improving the heat dissipation effect, and checking whether the heat dissipation system of the motor is working properly. At the same time, avoid continuing to use the vehicle when the motor is overheated to avoid irreversible damage to the motor.
Lubrication and maintenance
For the moving parts such as bearings and gears inside the motor, regular lubrication and maintenance are important measures to extend the service life of the motor. According to the recommendations of the motor manufacturer, use appropriate grease or lubricating oil to lubricate the bearings and gears of the motor to reduce friction and wear.
However, be careful not to add excessive lubricant to prevent the lubricant from entering the motor windings or other electrical components and causing motor failure. At the same time, check the sealing performance of the motor to ensure that the lubricant does not leak into the external environment and cause environmental pollution.
Maintenance of the motor controller
The motor controller is a key component in the drive shaft DC motor system, and its maintenance is equally important. Regularly check whether the appearance of the motor controller is damaged, ablated, etc., and whether the connecting wires are loose, detached or broken. Ensure that the heat dissipation holes of the controller are unobstructed to ensure the heat dissipation effect of the controller during operation.
In addition, avoid the controller from being contaminated by water, oil, dust, etc., and keep it clean and dry. If conditions permit, the controller can be regularly tested and calibrated to ensure its control accuracy and reliability.
Timely repair and replacement
Even with good maintenance and care, the motor and its related components will inevitably fail or be damaged during long-term use. Once the motor has abnormal sound, vibration, unstable speed, power reduction,If there are any faults such as the motor being damaged, it should be repaired or replaced in time.If the motor is still within the warranty period, you can contact the motor manufacturer or its authorized repair center for repair or replacement. If the motor is out of warranty, you should consider whether to repair or replace the motor with a new one based on the severity of the fault and the repair cost. When repairing or replacing the motor, you should choose professional technicians and formal repair channels to ensure the quality and safety of the repair.
Conclusion
As the core power source of electric tricycles, the performance and quality of the drive shaft DC motor play a vital role in the overall performance of the vehicle. Through in-depth discussions on the working principle, type, performance characteristics, application scenarios, market development status and trends, selection and maintenance of the drive shaft DC motor, we hope to help international wholesale buyers better understand this product and make wise purchasing decisions. In the future market, with the continuous advancement of technology and changes in market demand, the drive shaft DC motor will usher in more development opportunities and challenges. Buyers should pay close attention to market trends, establish long-term and stable cooperative relationships with high-quality suppliers, jointly promote the development of the electric tricycle industry, and provide people with cleaner, more efficient and convenient travel and transportation solutions.
