How to Maintain the Transaxle DC Motor for Optimal Performance
Introduction
The transaxle DC motor is a critical component in many modern vehicles and industrial applications. Its primary function is to convert electrical energy into mechanical energy, providing the necessary power to drive the vehicle or machinery. Proper maintenance of the transaxle DC motor is essential to ensure its optimal performance, longevity, and reliability. In this comprehensive guide, we will explore the key aspects of maintaining a transaxle DC motor, including regular cleaning, lubrication, electrical system checks, mechanical component inspections, and performance testing. By following these maintenance practices, you can extend the lifespan of your motor and avoid costly repairs or replacements.
Understanding the Transaxle DC Motor

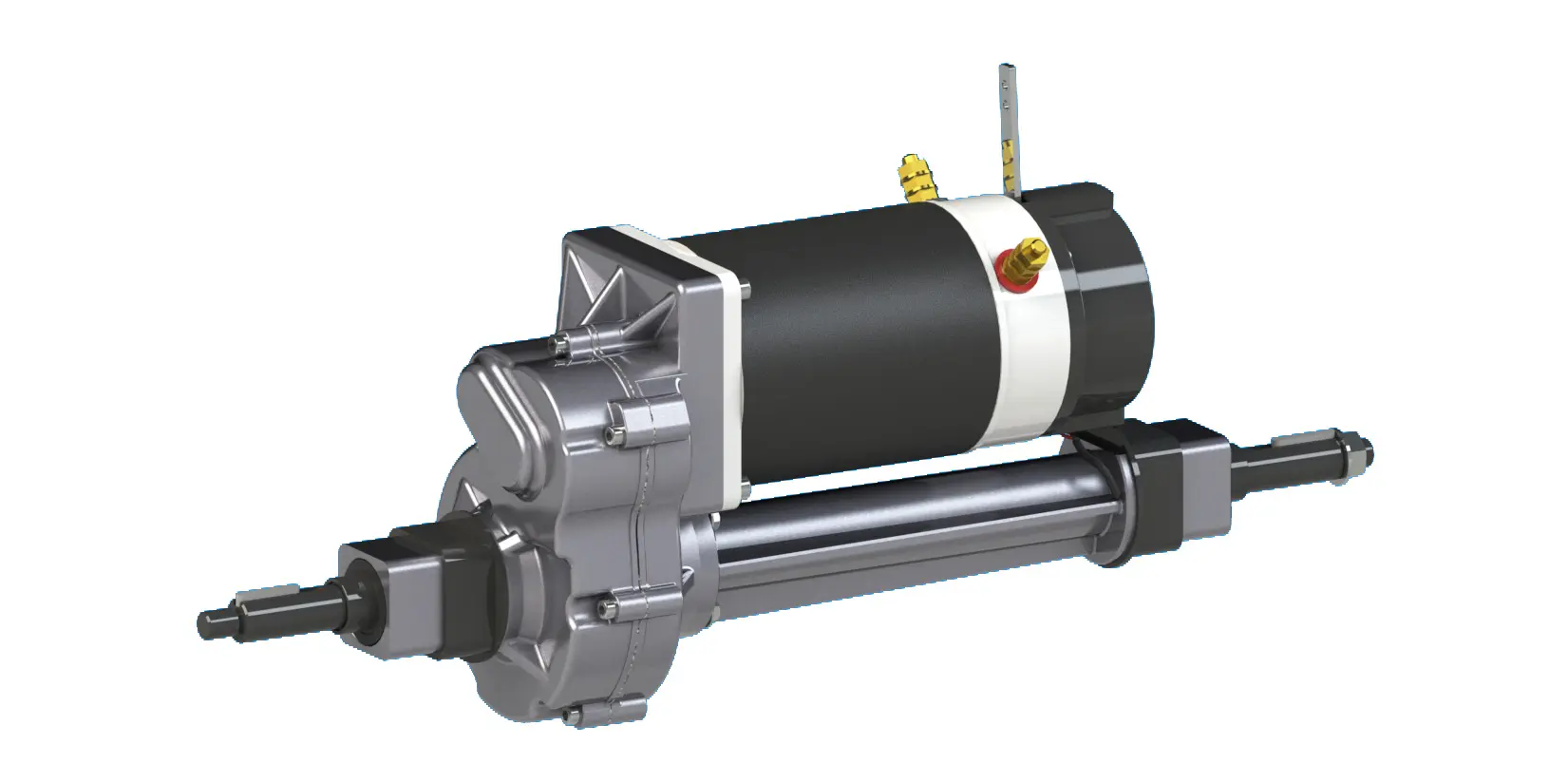

What Is a Transaxle DC Motor?
A transaxle DC motor is a type of direct current (DC) motor integrated into the transaxle assembly of a vehicle or machinery. The transaxle combines the transmission and axle assembly into a single unit, and the DC motor plays a crucial role in powering this system. DC motors are known for their high torque output, smooth operation, and ability to provide variable speed control, making them ideal for applications requiring precise and efficient power delivery.
Key Components of a Transaxle DC Motor
Stator: The stationary part of the motor that generates a magnetic field.
Rotor (Armature): The rotating part of the motor that interacts with the stator’s magnetic field to produce torque.
Commutator: A cylindrical assembly on the rotor that helps conduct current to the armature windings and ensures proper motor rotation.
Brushes: Carbon or metal-graphite components that make contact with the commutator to supply current to the rotor.
Bearings: Support the rotor and ensure smooth rotation.
Field Windings: Coils of wire wrapped around the stator to create the magnetic field.
Terminal Connections: Points where electrical connections are made to power the motor.
How Does a Transaxle DC Motor Work?
When electrical current flows through the field windings, it creates a magnetic field around the stator. The current also flows through the brushes and commutator to the armature windings on the rotor. The interaction between the magnetic field of the stator and the current-carrying armature windings generates torque, causing the rotor to spin. This rotational motion is then transferred to the transaxle, which drives the wheels or machinery.
Importance of Regular Maintenance
Proper maintenance is crucial for the optimal performance and longevity of a transaxle DC motor. Neglecting maintenance can lead to premature wear, reduced efficiency, and potential motor failure. Regular maintenance helps:
Prevent premature wear of components such as brushes, bearings, and windings.
Ensure efficient operation by maintaining proper lubrication and electrical connections.
Extend the motor’s lifespan by addressing minor issues before they become major problems.
Reduce energy consumption by keeping the motor running smoothly and efficiently.
Avoid costly repairs or replacements by identifying and resolving issues early.
Maintenance Schedule
To ensure your transaxle DC motor operates at its best, follow a structured maintenance schedule. The frequency of maintenance tasks depends on factors such as motor usage, operating environment, and manufacturer recommendations. Below is a general maintenance schedule:
Daily Checks
Visual inspection for visible damage, leaks, or loose components.
Listen for unusual noises during operation, such as grinding, squealing, or knocking.
Check for proper operation by ensuring the motor starts and runs smoothly.
Weekly Maintenance
Clean the motor exterior to remove dust, dirt, and debris.
Inspect brushes for wear and replace them if necessary.
Check terminal connections for tightness and corrosion.
Monitor motor temperature during operation to ensure it stays within acceptable limits.
Monthly Maintenance
Lubricate bearings using the recommended lubricant.
Inspect the commutator for wear, grooves, or discoloration.
Check the alignment of the motor and transaxle assembly.
Test the motor’s performance using appropriate diagnostic tools.
Quarterly Maintenance
Perform a thorough cleaning of the motor and surrounding components.
Check the integrity of all electrical connections and wiring.
Inspect the field windings for signs of damage or overheating.
Test the motor’s insulation resistance to ensure it meets specifications.
Annual Maintenance
Disassemble and inspect internal components, including the rotor, stator, and bearings.
Replace worn or damaged parts as needed.
Balance the rotor if necessary to ensure smooth operation.
Conduct a comprehensive performance test under various load conditions.
Step-by-Step Maintenance Guide
1. Safety Precautions
Before performing any maintenance on the transaxle DC motor, ensure the following safety precautions are taken:
Disconnect power: Turn off the motor and disconnect it from the power source to prevent accidental activation.
Lockout-tagout (LOTO): Implement proper lockout-tagout procedures to ensure the motor cannot be energized during maintenance.
Use protective equipment: Wear gloves, safety glasses, and other appropriate personal protective equipment (PPE).
Work in a clean environment: Ensure the workspace is clean and free of debris to avoid contamination.
2. Visual Inspection
Begin with a thorough visual inspection of the motor and its components:
Check for physical damage: Look for cracks, dents, or deformation in the motor housing, bearings, and other parts.
Inspect for leaks: Look for signs of fluid leaks around seals and gaskets.
Examine the motor mounting: Ensure the motor is securely mounted and aligned properly with the transaxle.
Check for corrosion: Inspect terminal connections, brushes, and other metal components for signs of corrosion.
3. Cleaning the Motor
Regular cleaning helps remove contaminants that can affect motor performance and longevity:
Exterior cleaning: Use a soft brush or compressed air to remove dust and debris from the motor housing and cooling fins.
Interior cleaning: If accessible, use compressed air to blow out dust and debris from inside the motor. Avoid using liquids or harsh chemicals that could damage internal components.
Brush and commutator cleaning: Use a soft brush or cloth to gently clean the brushes and commutator surface. Remove any carbon dust or debris that may have accumulated.
4. Inspecting and Replacing Brushes
Brushes are critical for conducting current to the rotor and are subject to wear over time:
Check brush wear: Measure the length of the brushes and compare them to the manufacturer’s recommended replacement size. Replace brushes if they are worn below the specified limit.
Inspect for damage: Look for cracks, chipping, or uneven wear on the brushes. Replace damaged brushes immediately.
Check brush contact: Ensure the brushes make proper contact with the commutator. Adjust the brush holders if necessary to maintain proper alignment.
Lubricate brush holders: Apply a small amount of recommended lubricant to the brush holders to reduce friction.
5. Lubricating Bearings
Proper lubrication of bearings is essential for smooth operation and reduced wear:
Identify lubrication points: Locate the grease fittings or oil caps on the motor bearings.
Use the correct lubricant: Follow the manufacturer’s recommendations for the type and amount of lubricant to use. Common lubricants include grease and oil, each suited for specific applications.
Apply lubricant: Use a grease gun or oil can to apply the lubricant to the bearings. Avoid over-lubrication, as this can cause excess grease to leak and contaminate other components.
Check bearing condition: While lubricating, listen for unusual noises or vibrations that may indicate bearing damage. Replace damaged bearings promptly.
6. Electrical System Checks
The electrical system must be in good condition to ensure efficient power delivery to the motor:
Inspect terminal connections: Check for loose, corroded, or damaged terminal connections. Tighten connections as needed and clean corroded terminals using a wire brush or terminal cleaner.
Test insulation resistance: Use a megohmmeter to test the insulation resistance between the motor windings and the ground. Compare the readings to the manufacturer’s specifications. Low insulation resistance indicates potential winding damage or moisture ingress.
Check for short circuits: Use a multimeter to test for short circuits in the motor windings. High resistance or continuity where there should be none indicates a short circuit, which requires repair or replacement of the windings.
Inspect wiring and cables: Check all electrical wiring and cables connected to the motor for signs of wear, damage, or aging. Replace damaged wiring to prevent electrical faults.
7. Commutator Inspection and Maintenance
The commutator plays a vital role in transferring current to the rotor and ensuring smooth motor operation:
Inspect commutator condition: Look for signs of wear, grooves, burns, or discoloration on the commutator surface. Minor wear can often be addressed by resurfacing the commutator.
Resurface the commutator: If the commutator shows signs of uneven wear or grooves, use a commutator lathe to resurface it. Ensure the resurfacing is done according to manufacturer specifications.
Check commutator alignment: Ensure the commutator is properly aligned with the brushes. Misalignment can cause uneven wear and poor contact.
Clean the commutator: Use a soft brush or cloth to remove any carbon dust or debris from the commutator surface.
8. Performance Testing
Regular performance testing helps identify issues early and ensures the motor is operating within specifications:
No-load test: Run the motor without any load applied and measure its speed, voltage, and current. Compare the readings to the manufacturer’s specifications to ensure proper operation.
Load test: Apply a known load to the motor and measure its performance under load conditions. Check for torque output, efficiency, and temperature rise.
Balanced load test: Ensure the motor operates smoothly under balanced load conditions. Unbalanced loads can cause vibrations and premature wear.
Vibration analysis: Use a vibration analyzer to detect any abnormal vibrations that may indicate bearing issues, misalignment, or imbalance.
9. Addressing Common Issues
Common issues that may arise during maintenance and their solutions include:
Overheating: Caused by excessive load, poor ventilation, or winding issues. Reduce the load, ensure proper cooling, and inspect windings for damage.
Excessive noise: Often due to worn bearings, loose components, or misalignment. Lubricate bearings, tighten loose parts, and check alignment.
Low torque output: May result from worn brushes, dirty commutator, or electrical issues. Replace brushes, clean the commutator, and check electrical connections.
Motor vibration: Typically caused by imbalance, misalignment, or bearing failure. Balance the rotor, align the motor and transaxle, and replace damaged bearings.
Advanced Maintenance Techniques
For motors operating in harsh environments or under heavy loads, advanced maintenance techniques may be necessary:
Vibration Analysis
Vibration analysis involves using specialized equipment to measure and analyze motor vibrations. This technique helps identify issues such as imbalance, misalignment, bearing defects, and looseness. Regular vibration analysis can detect problems early, allowing for timely intervention and preventing catastrophic failures.
Thermographic Inspection
Thermographic cameras can detect hot spots on the motor, indicating areas of excessive heat generation. This helps identify issues such as winding faults, bearing problems, or poor electrical connections. Thermographic inspection is particularly useful for motors operating in hard-to-access locations or under heavy loads.
Motor Rewinding
If the motor windings are damaged beyond repair, rewinding may be necessary. This involves removing the old windings and replacing them with new ones. Rewinding should be performed by qualified technicians using proper equipment to ensure the motor’s performance is restored to original specifications.
Predictive Maintenance
Predictive maintenance uses sensors and monitoring systems to continuously track motor performance and condition. By analyzing data such as temperature, vibration, and electrical parameters, potential issues can be predicted and addressed before they lead to failure. This approach minimizes downtime and extends the motor’s lifespan.
Troubleshooting Guide
A troubleshooting guide can help quickly identify and resolve common motor issues:
Issue Possible Causes Solutions
Motor does not start No power, faulty controller, broken rotor, seized bearings Check power supply, inspect controller, check rotor and bearings
Overheating Excessive load, poor ventilation, winding faults, low voltage Reduce load, improve ventilation, inspect windings, check voltage
Excessive noise Worn bearings, loose components, misalignment, rotor rubbing against stator Lubricate bearings, tighten components, align motor, inspect rotor and stator
Low torque output Worn brushes, dirty commutator, electrical issues, weak magnetic field Replace brushes, clean commutator, check connections, inspect field windings
Motor vibration Imbalance, misalignment, bearing failure, loose mounting Balance rotor, align motor, replace bearings, secure mounting
Extending Motor Lifespan
To maximize the lifespan of your transaxle DC motor, consider the following tips:
Proper Installation
Ensure the motor is installed correctly, with proper alignment, secure mounting, and appropriate electrical connections. Follow the manufacturer’s installation guidelines to avoid issues from the start.
Environmental Protection
Protect the motor from harsh environmental conditions such as moisture, dust, and extreme temperatures. Use appropriate enclosures or coatings if the motor operates in a challenging environment.
Regular Lubrication
Follow the recommended lubrication schedule and use the correct type of lubricant to minimize wear on bearings and other moving parts.
Load Management
Avoid overloading the motor, as excessive loads can cause overheating and premature wear. Match the motor’s capacity to the application requirements.
Balanced Operation
Ensure the motor operates under balanced load conditions to prevent vibrations and uneven wear. Regularly check for alignment and balance issues.
Professional Servicing
For complex maintenance tasks or when in doubt, consult qualified motor service professionals. They have the expertise and tools to diagnose and resolve issues effectively.
Conclusion
Maintaining a transaxle DC motor is essential for ensuring its optimal performance, longevity, and reliability. By following a structured maintenance schedule, performing regular inspections, and addressing issues promptly, you can keep your motor running smoothly and avoid costly repairs or replacements. Remember that preventive maintenance is always more cost-effective than reactive repairs. Implement these maintenance practices to get the most out of your transaxle DC motor and ensure it continues to deliver peak performance for years to come.
