1. Understanding RoHS Compliance
1.1 Definition and scope of RoHS
RoHS, which stands for Restriction of Hazardous Substances, is a directive established by the European Union to regulate the use of certain hazardous substances in electrical and electronic equipment. Initially introduced as Directive 2002/95/EC in 2003, it was later revised and updated to Directive 2011/65/EU, commonly referred to as RoHS 2.0. The primary goal of RoHS is to protect human health and the environment by limiting the use of harmful substances in electronic products, thereby facilitating the recycling and disposal of electronic waste.
The scope of RoHS is extensive, covering a wide range of electronic and electrical products that operate with a maximum voltage of 1000 volts AC or 1500 volts DC. This includes large household appliances, small household appliances, IT and telecommunications equipment, consumer electronics, lighting devices, electrical and electronic tools, toys, medical devices (with some exceptions), monitoring and control instruments, and more. As of the latest revisions, RoHS 2.0 also includes additional categories such as medical devices and monitoring/control instruments, with specific transition periods for compliance.
1.2 Restricted substances under RoHS
RoHS restricts the use of ten specific hazardous substances in electronic and electrical equipment. These substances are known to pose significant risks to human health and the environment, particularly when released during the disposal or recycling of electronic products. The restricted substances and their maximum allowable concentrations are as follows:
Lead (Pb): Less than 0.1% (1000 ppm)
Mercury (Hg): Less than 0.1% (1000 ppm)
Cadmium (Cd): Less than 0.01% (100 ppm)
Hexavalent Chromium (Cr VI): Less than 0.1% (1000 ppm)
Polybrominated Biphenyls (PBBs): Less than 0.1% (1000 ppm)
Polybrominated Diphenyl Ethers (PBDEs): Less than 0.1% (1000 ppm)
Bis(2-ethylhexyl) phthalate (DEHP): Less than 0.1% (1000 ppm)
Butyl benzyl phthalate (BBP): Less than 0.1% (1000 ppm)
Dibutyl phthalate (DBP): Less than 0.1% (1000 ppm)
Diisobutyl phthalate (DIBP): Less than 0.1% (1000 ppm)
These substances are commonly found in various components of electronic products, such as soldering materials, plastic casings, connectors, and certain types of coatings. For example, lead is often used in soldering, cadmium in switches and batteries, and mercury in some types of lamps. The inclusion of phthalates (DEHP, BBP, DBP, and DIBP) in the list of restricted substances, as mandated by the 2015 revision (EU) 2015/863, further expands the scope of RoHS compliance requirements.
Compliance with RoHS is essential for manufacturers and suppliers of electronic products, as failure to meet these standards can result in significant penalties, including fines and product recalls. Moreover, RoHS compliance is a critical factor for market access, particularly for products intended for the European market.
2. Initial Assessment of Transaxle Materials
2.1 Identifying material components

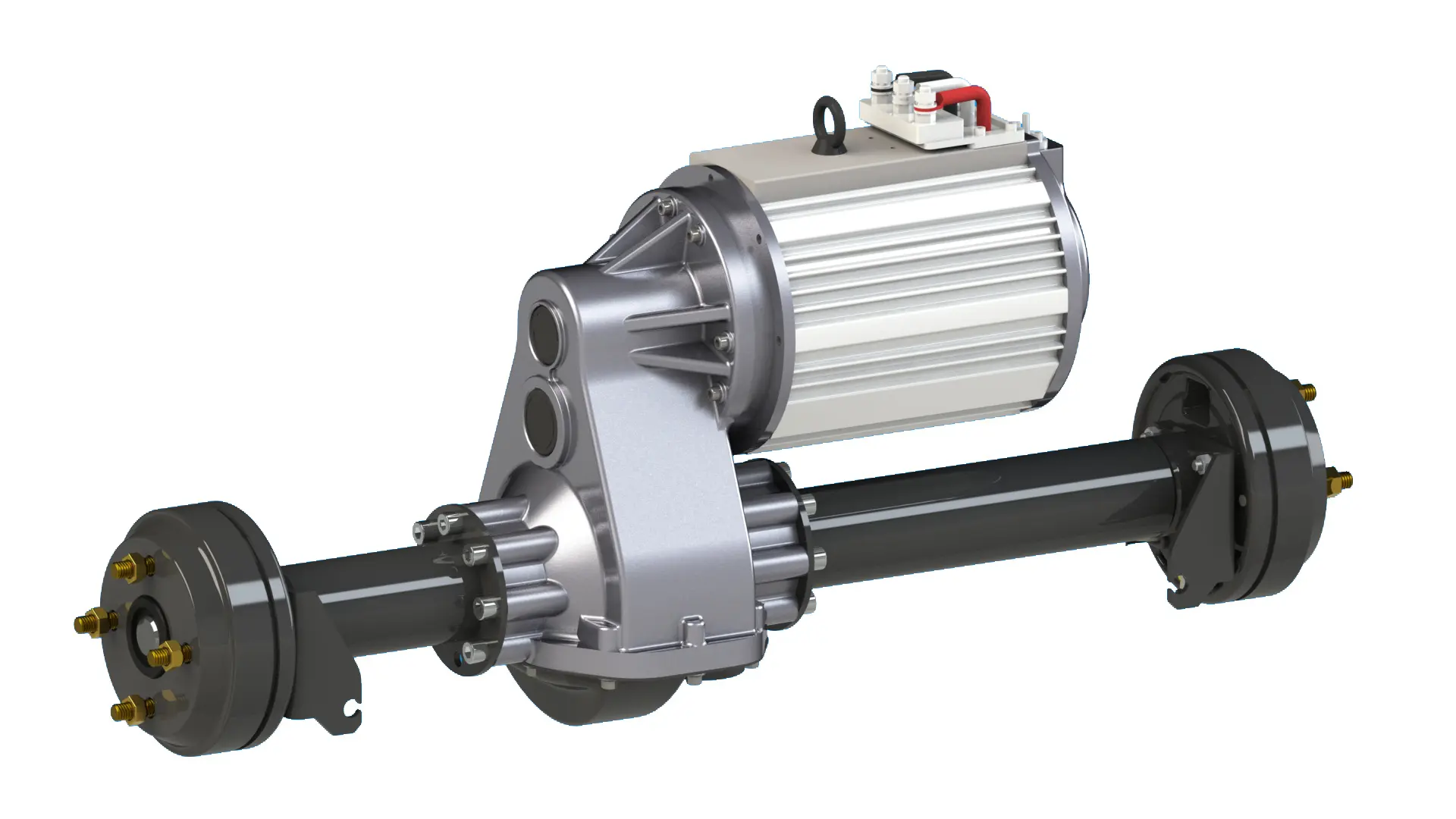

To determine if a transaxle’s materials are RoHS compliant, the first step is to identify the specific materials used in its construction. A transaxle is a complex assembly that integrates the transmission and differential functions in a single unit, commonly found in front-wheel-drive vehicles and some rear-wheel-drive configurations. The primary material components of a transaxle typically include:
Metallic Components: These are the most significant part of a transaxle, including the housing, gears, shafts, and bearings. The housing is usually made of cast iron or aluminum alloys. Gears and shafts are often composed of steel or other high-strength metals. Bearings are typically made from steel or ceramic materials.
Plastic Components: These may include seals, gaskets, and certain housing components. Plastics used in transaxles are often chosen for their durability, resistance to oils and fuels, and ability to withstand high temperatures.
Electrical Components: Modern transaxles may contain electronic control units (ECUs), sensors, and wiring harnesses. These components are crucial for the operation and monitoring of the transaxle and are subject to RoHS compliance requirements.
Each of these material categories must be assessed for compliance with RoHS regulations. For example, lead is commonly used in soldering for electrical components, and cadmium may be present in certain types of plating or as an alloying element in some metals. Mercury can be found in switches or sensors, while hexavalent chromium is used in some corrosion-resistant coatings. The presence of any of the ten restricted substances, even in trace amounts, can render a transaxle non-compliant.
2.2 Reviewing supplier documentation
Once the material components have been identified, the next step is to review the documentation provided by suppliers. This documentation is crucial for verifying the RoHS compliance of each material used in the transaxle.
Key documents to review include:
Material Safety Data Sheets (MSDS): These sheets provide detailed information about the chemical composition of materials, including any hazardous substances they may contain. Suppliers should provide MSDS for all materials used in the transaxle, confirming that none of the RoHS restricted substances exceed the allowable limits.
Certificates of Compliance (CoC): Suppliers should provide CoCs that specifically state their materials comply with the RoHS directive. These certificates are often based on testing and certification processes that ensure the materials meet the required standards.
Test Reports: Detailed test reports from accredited laboratories can provide empirical evidence of RoHS compliance. These reports should include the results of tests for each of the ten restricted substances, showing that their concentrations are within the allowable limits.
For example, a supplier of steel shafts for a transaxle should provide documentation that confirms the steel does not contain more than 0.1% lead, 0.1% mercury, or 0.1% hexavalent chromium. Similarly, a supplier of plastic seals should provide documentation that the plastic does not contain more than 0.1% of any of the restricted phthalates (DEHP, BBP, DBP, DIBP).
In addition to these documents, it is important to maintain clear communication with suppliers to ensure ongoing compliance. This includes requesting updated documentation when new materials are introduced or when there are changes in the manufacturing process. Regular audits and reviews of supplier documentation can help identify any potential compliance issues early, allowing for corrective actions to be taken before the transaxle is assembled and distributed.
3. Testing for RoHS Compliance
3.1 Selecting appropriate testing methods
To ensure the RoHS compliance of a transaxle’s materials, selecting the appropriate testing methods is crucial. Different materials and components may require different testing approaches to accurately determine the presence and concentration of restricted substances. Here are some commonly used testing methods:
X-ray Fluorescence (XRF) Spectroscopy: This is a non-destructive testing method widely used for RoHS compliance. It can quickly identify and quantify the elemental composition of materials, including the restricted substances such as lead, mercury, and cadmium. XRF is particularly useful for testing metallic components and coatings. For example, it can detect lead in solder or cadmium in plating with a detection limit as low as 10 ppm, which is well within the RoHS compliance range.
Inductively Coupled Plasma Mass Spectrometry (ICP-MS): This method is highly sensitive and can provide precise measurements of trace elements in various materials. It is suitable for testing complex materials such as plastics and composites. ICP-MS can detect restricted substances at very low concentrations, often below the RoHS limits, making it an ideal choice for confirming compliance. For instance, it can accurately measure the concentration of mercury in plastic components down to 0.01% (100 ppm).
Gas Chromatography-Mass Spectrometry (GC-MS): This method is specifically used for detecting and quantifying organic compounds, such as the restricted phthalates (DEHP, BBP, DBP, DIBP). It is highly effective for analyzing plastic components and other materials that may contain these substances. GC-MS can detect phthalates at concentrations as low as 0.1% (1000 ppm), ensuring compliance with RoHS requirements.
Fourier Transform Infrared Spectroscopy (FTIR): This method is useful for identifying the chemical structure of materials, particularly plastics. It can help determine the presence of certain restricted substances, such as polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs). FTIR can provide qualitative results, which can then be confirmed by more quantitative methods like GC-MS.
The choice of testing method depends on the specific material being tested and the type of restricted substances that need to be detected. For example, XRF is suitable for metallic components, while ICP-MS and GC-MS are more appropriate for plastics and organic compounds. Combining multiple testing methods can provide a comprehensive assessment of RoHS compliance for all materials used in a transaxle.
3.2 Conducting chemical analysis
Once the appropriate testing methods have been selected, conducting thorough chemical analysis is essential to ensure RoHS compliance. Here are the steps involved in conducting chemical analysis:
Sample Preparation: Proper sample preparation is crucial for accurate testing results. For metallic components, samples should be cleaned and polished to remove any surface contaminants. For plastic components, samples should be cut into small pieces or ground into a fine powder to ensure uniformity. For example, when testing a steel shaft, it should be cleaned with an appropriate solvent to remove any oils or residues before testing.
Testing Execution: The selected testing method should be executed according to the standard operating procedures. For XRF, the sample is placed in the testing chamber, and the instrument measures the emitted X-rays to determine the elemental composition. For ICP-MS, the sample is dissolved in an acid solution and then introduced into the plasma for ionization and mass spectrometry analysis. For GC-MS, the sample is injected into the gas chromatograph, where it is separated into individual components before being detected by the mass spectrometer.
Data Interpretation: The data obtained from the testing should be carefully interpreted to determine the concentration of restricted substances. The results should be compared with the RoHS limits to assess compliance. For example, if the XRF analysis shows that a metal component contains 0.05% lead, it is within the RoHS limit of 0.1%. However, if the ICP-MS analysis detects 0.02% mercury in a plastic component, it is also compliant with the RoHS limit of 0.1%.
Documentation and Reporting: All testing results should be thoroughly documented and reported. The report should include the testing method used, sample preparation details, test results, and a conclusion on RoHS compliance. This documentation is essential for regulatory compliance and can be used as evidence of due diligence in case of audits or inspections.
Conducting chemical analysis requires specialized equipment, trained personnel, and adherence to strict quality control measures. Ensuring that all materials used in a transaxle meet RoHS compliance through rigorous testing is essential for protecting human health and the environment, as well as for maintaining market access and avoiding legal penalties.
4. Documentation and Certification
4.1 Certificates of compliance
To demonstrate that a transaxle’s materials are RoHS compliant, obtaining and maintaining proper certificates of compliance is essential. These certificates serve as official documentation that the materials meet the RoHS directive’s requirements. Key aspects of certificates of compliance include:
Issuing Authority: Certificates should be issued by accredited certification bodies or recognized testing laboratories. These organizations have the expertise and authority to verify RoHS compliance. For example, a well-known certification body like TÜV Rheinland or SGS can provide reliable RoHS compliance certificates.
Scope of Certification: The certificate should clearly state the scope of the materials covered. For a transaxle, this includes all metallic, plastic, and electrical components. It should specify whether the certification applies to individual components or the entire assembly.
Test Methods and Standards: The certificate should detail the testing methods used to verify compliance. This includes specifying whether XRF, ICP-MS, GC-MS, or other methods were employed. It should also reference the relevant standards, such as Directive 2011/65/EU (RoHS 2.0) and any additional national or regional standards applicable to the transaxle’s market.
Expiration Date and Renewal: RoHS compliance certificates typically have an expiration date, often set at one to three years from the date of issuance. Manufacturers must plan for renewal to ensure continuous compliance. For example, if a certificate expires in 2027, the manufacturer should initiate the renewal process in early 2026 to avoid any compliance gaps.
Traceability: The certificate should provide traceability to the specific batches or lots of materials tested. This ensures that the compliance status can be accurately tracked and verified throughout the supply chain. For instance, batch numbers or lot codes should be included in the certificate to link the tested materials to the actual components used in the transaxle.
In addition to the certificates of compliance from suppliers, manufacturers may also obtain their own RoHS compliance certificates for the assembled transaxle. This provides an additional layer of assurance to customers and regulatory authorities that the final product meets all RoHS requirements.
4.2 Material declaration forms
Material declaration forms are another critical component of RoHS compliance documentation for transaxle materials. These forms provide detailed information about the materials used and their compliance status. Key elements of material declaration forms include:
Material Identification: Each material used in the transaxle should be clearly identified, including its name, type, and application. For example, “Cast Iron Housing,” “Steel Gear,” or “Polymer Seal” should be specified.
Supplier Information: The form should include the name, address, and contact details of the material supplier. This information is essential for traceability and follow-up in case of any compliance issues.
Compliance Status: The form should explicitly state whether the material complies with RoHS regulations. This can be indicated with a simple “Yes” or “No” or a more detailed compliance statement. For example, “This material complies with Directive 2011/65/EU (RoHS 2.0) and does not contain any restricted substances above the allowable limits.”
Concentration Levels: For materials that contain any of the restricted substances, the form should provide the concentration levels of these substances. This ensures transparency and allows for verification against the RoHS limits. For instance, “Lead (Pb): 0.05% (1000 ppm limit).”
Supporting Documentation: The form should reference any supporting documentation, such as test reports or certificates of compliance, that confirm the material’s compliance. This provides additional evidence and facilitates audits or inspections.
Material declaration forms should be comprehensive and cover all materials used in the transaxle. They should be reviewed and updated regularly to reflect any changes in material composition or supplier information. Manufacturers should maintain a centralized database of material declaration forms to ensure easy access and management.
By obtaining and maintaining proper certificates of compliance and material declaration forms, manufacturers can effectively demonstrate the RoHS compliance of a transaxle’s materials. This not only ensures regulatory compliance but also builds trust with customers and regulatory authorities, facilitating market access and reducing the risk of non-compliance penalties.
5. Regulatory and Industry Standards
5.1 EU RoHS Directive specifics
The EU RoHS Directive, formally known as Directive 2011/65/EU (RoHS 2.0), is the cornerstone regulation for ensuring the environmental and health safety of electronic products within the European market. This directive builds upon the initial RoHS dire
ctive (2002/95/EC) and incorporates additional substances and product categories to enhance compliance and protection.
Substance Restrictions: The directive restricts the use of ten hazardous substances in electronic and electrical equipment, including lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr VI), polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), bis(2-ethylhexyl) phthalate (DEHP), butyl benzyl phthalate (BBP), dibutyl phthalate (DBP), and diisobutyl phthalate (DIBP). Each of these substances has a maximum allowable concentration limit, typically ranging from 0.01% (100 ppm) for cadmium to 0.1% (1000 ppm) for the others.
Product Scope: The directive applies to a broad range of products, including large household appliances, small household appliances, IT and telecommunications equipment, consumer electronics, lighting devices, electrical and electronic tools, toys, medical devices (with some exceptions), monitoring and control instruments, and more. As of the latest revisions, it also includes additional categories such as medical devices and monitoring/control instruments, with specific transition periods for compliance.
Compliance Verification: Manufacturers must ensure that their products comply with the RoHS directive through rigorous testing and certification processes. This involves using accredited laboratories to test for the presence and concentration of restricted substances in materials and components. Certificates of compliance and detailed test reports are required to demonstrate compliance.
Market Access: Compliance with the EU RoHS Directive is mandatory for products intended for the European market. Non-compliant products may face significant penalties, including fines, product recalls, and loss of market access. Therefore, manufacturers must prioritize RoHS compliance to maintain their market presence and avoid legal and financial repercussions.
5.2 Other relevant regulations
In addition to the EU RoHS Directive, several other regulations and standards are relevant to ensuring the environmental and health safety of electronic products globally. These regulations often complement the EU RoHS Directive and provide a more comprehensive framework for compliance.
China RoHS: China has its own set of regulations for restricting hazardous substances in electronic and electrical products, known as China RoHS. This regulation, formally titled “Administrative Measures on the Control of Pollution by Electronic Information Products” (Order No. 32, 2016), requires manufacturers to declare the presence of hazardous substances in their products and label them accordingly. China RoHS also includes a list of restricted substances similar to the EU RoHS Directive, with some additional requirements for specific product categories.
REACH Regulation: The Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulation (EC 1907/2006) is another critical regulation that impacts the use of chemicals in electronic products. While primarily focused on the European market, REACH requires manufacturers to register and evaluate the safety of chemicals used in their products. This regulation complements the EU RoHS Directive by addressing a broader range of chemicals and ensuring that they are used safely throughout their lifecycle.
WEEE Directive: The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) is closely related to the RoHS Directive. It aims to reduce the environmental impact of electronic waste by promoting recycling and proper disposal practices. Manufacturers must ensure that their products are designed for easy disassembly and recycling, and they must comply with specific recycling targets. This directive works in tandem with the RoHS Directive to minimize the environmental footprint of electronic products.
UL 110 Standard: The Underwriters Laboratories (UL) 110 standard is a voluntary certification program for low-voltage electrical equipment. It provides guidelines for the safe use of materials and components in electronic products, including restrictions on hazardous substances. While not mandatory, obtaining UL 110 certification can enhance market credibility and demonstrate a commitment to environmental and health safety.
California Proposition 65: In the United States, California Proposition 65, formally known as the Safe Drinking Water and Toxic Enforcement Act of 1986, requires businesses to provide warnings about significant exposures to chemicals known to cause cancer, birth defects, or other reproductive harm. This regulation applies to a wide range of products, including electronic devices, and requires manufacturers to ensure that their products do not contain listed chemicals above specified levels.
Compliance with these regulations and standards is essential for manufacturers to ensure the environmental and health safety of their products. While the EU RoHS Directive is a primary focus, adhering to othe
r relevant regulations provides a more comprehensive approach to compliance and helps manufacturers navigate the complex regulatory landscape across different markets.
6. Practical Steps for Verification
6.1 Partnering with accredited labs
To verify the RoHS compliance of a transaxle’s materials, partnering with accredited laboratories is essential. These labs have the expertise, equipment, and certifications required to conduct accurate and reliable tests. Here are some key points to consider when selecting an accredited lab:
Accreditation and Certifications: Ensure that the lab is accredited by recognized bodies such as ISO/IEC 17025. This accreditation guarantees that the lab follows strict quality control standards and that its testing methods and results are reliable. For example, a lab accredited by the UK Accreditation Service (UKAS) or the American Association for Laboratory Accreditation (A2LA) is more likely to provide trustworthy results.
Testing Capabilities: The lab should have the capability to test for all ten restricted substances under RoHS. This includes having the necessary equipment such as X-ray Fluorescence (XRF) spectrometers, Inductively Coupled Plasma Mass Spectrometry (ICP-MS), Gas Chromatography-Mass Spectrometry (GC-MS), and Fourier Transform Infrared Spectroscopy (FTIR). For instance, ICP-MS can detect trace elements like mercury and cadmium at very low concentrations, ensuring compliance with RoHS limits.
Experience and Expertise: Choose a lab with extensive experience in testing electronic and electrical components. Labs with a track record of working with automotive and industrial equipment manufacturers are more likely to understand the specific requirements and complexities of testing transaxle materials. For example, a lab that has previously tested similar automotive components will be better equipped to handle the nuances of transaxle testing.
Turnaround Time: Consider the lab’s turnaround time for providing test results. In the automotive industry, where production schedules are tight, timely results are crucial. A lab that can provide results within a week or two can help manufacturers avoid delays in production and distribution.
Cost: While cost should not be the primary factor, it is important to consider the lab’s pricing structure. Compare quotes from different labs to ensure that you are getting a fair price for the services provided. However, do not compromise on quality and reliability for the sake of cost savings.
By partnering with an accredited lab, manufacturers can ensure that their transaxle materials are thoroughly tested and verified for RoHS compliance. This partnership provides a solid foundation for demonstrating compliance and mitigates the risk of non-compliance issues.
6.2 Using compliance databases
Using compliance databases is another practical step for verifying the RoHS compliance of transaxle materials. These databases provide valuable information and resources that can streamline the compliance process. Here are some ways compliance databases can be beneficial:
Material Declarations and Certificates: Compliance databases often contain a repository of material declarations and certificates of compliance from various suppliers. Manufacturers can access these documents to quickly verify the RoHS compliance status of the materials used in their transaxles. For example, the BOMcheck database, managed by the International Electronics Manufacturing Initiative (iNEMI), allows manufacturers to upload and access material declarations from over 3,100 suppliers.
Substance Information: These databases provide detailed information about the restricted substances, including their chemical properties, common uses, and potential health and environmental risks. This information helps manufacturers understand the specific requirements for each substance and ensures that they are aware of any changes or updates to the regulations. For instance, the European Chemicals Agency (ECHA) database offers comprehensive data on restricted substances under the EU RoHS Directive.
Risk Assessment Tools: Some compliance databases offer risk assessment tools that help manufacturers identify potential compliance risks in their supply chain. These tools can analyze material declarations and test results to flag any materials that may not meet RoHS requirements. For example, the UL iQ database provides a risk assessment feature that evaluates the compliance status of materials based on their chemical composition and regulatory requirements.
Regulatory Updates: Compliance databases are regularly updated with the latest regulatory changes and amendments. Manufacturers can stay informed about any new requirements or exemptions related to RoHS compliance. This ensures that their compliance efforts remain up-to-date and aligned with the current regulations. For example, the EU’s Official Journal regularly publishes updates to the RoHS Directive, which are then reflected in compliancedatabases.
Supplier Management: Compliance databases can assist in managing supplier relationships by providing a centralized platform for storing and accessing supplier information. Manufacturers can track the compliance status of their suppliers and communicate any compliance issues or requirements effectively. For instance, the SGS RoHS Compliance Assessment Service, integrated with BOMcheck, helps manufacturers manage their supply chain and ensure that suppliers provide compliant materials.
By utilizing compliance databases, manufacturers can efficiently verify the RoHS compliance of transaxle materials, manage their supply chain, and stay informed about regulatory changes. This proactive approach helps ensure compliance and reduces the risk of non-compliance penalties.
7. Challenges and Considerations
7.1 Potential exemptions
When evaluating whether gearbox materials comply with the RoHS Directive, potential exemptions need to be considered. The RoHS Directive provides exemptions for certain specific uses or materials that are difficult to replace technically. These exemptions allow the use of restricted substances under certain conditions. For example, some high-performance electronic components may be exempted from the use of lead due to technical limitations. According to the latest revision of the European Commission, some exemptions have clear expiration dates, such as the exemption of lead in certain types of glass (such as lead glass) until July 21, 2025. In addition, there are specific exemptions for certain electronic devices for specific purposes, such as medical devices and monitoring instruments. These exemptions are usually intended to ensure the performance and safety of the equipment. When manufacturers take advantage of exemptions, they must ensure that their products meet the specific conditions of the exemption and take measures to achieve full compliance before the exemption expires.
7.2 Dealing with legacy materials
Dealing with legacy materials is another important challenge to ensure gearbox RoHS compliance. Legacy materials refer to those materials that were produced or purchased before the RoHS directive came into effect, which may contain restricted substances but were not in violation of regulations at the time. In actual operation, manufacturers may face the following problems: First, the legacy materials in stock may be difficult to replace, especially when these materials are still used in certain specific models of gearboxes. Second, for legacy materials that have been installed in equipment, additional evaluation and testing may be required to determine whether they comply with current RoHS standards. For example, some older models of gearboxes may have used solder materials containing lead, which were compliant at the time, but now need to be reassessed for compliance. In addition, manufacturers also need to consider how to deal with these legacy materials to avoid potential risks to the environment and health. One possible solution is to phase out legacy materials and achieve full compliance through technology upgrades and material replacement. At the same time, manufacturers can work with suppliers to find alternative materials that meet RoHS standards to reduce their dependence on legacy materials.
Post time: Feb-19-2025
